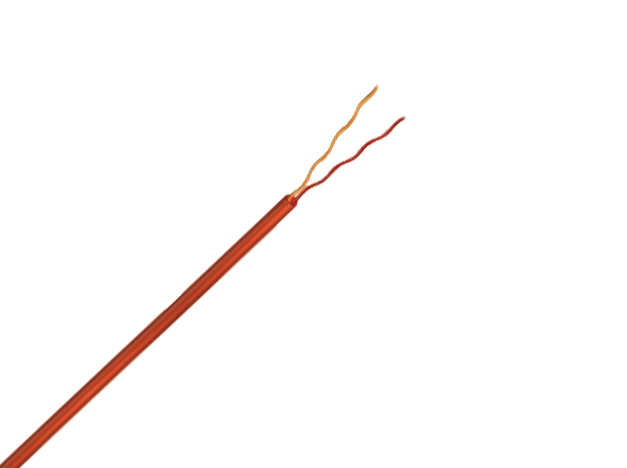

产品详情
| 规格 | 24awg | 22awg | 20awg | 18awg | 16awg | 14awg | 12awg | 10awg | |
| 2c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 3.89 | 4.12 | 4.5 | 4.99 | 5.45 | 6.23 | 6.99 | 8.28 | |
| 3c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 4.47 | 4.76 | 5.24 | 5.85 | 6.43 | 7.4 | 8.36 | 9.97 | |
| 4c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 4.95 | 5.29 | 5.85 | 6.56 | 7.23 | 8.38 | 9.49 | 11.37 | |
| 5c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 5.37 | 5.75 | 6.38 | 7.19 | 7.94 | 9.23 | 10.48 | 12.6 | |
| 6c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 5.75 | 6.17 | 7.26 | 8.15 | 8.98 | 10.59 | 11.97 | 14.3 | |
| 7c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 6.1 | 6.55 | 7.7 | 8.66 | 9.56 | 11.29 | 12.79 | 15.31 | |
| 8c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 6.42 | 6.9 | 8.11 | 9.14 | 10.1 | 11.94 | 13.55 | 16.25 | |
| 9c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 6.72 | 7.24 | 8.49 | 9.58 | 10.61 | 12.55 | 14.26 | 17.13 | |
| 10c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 7.01 | 7.55 | 8.85 | 10 | 11.09 | 13.12 | 14.93 | 17.96 | |
| 11c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 7.28 | 7.85 | 9.19 | 10.4 | 11.54 | 13.67 | 15.56 | 18.74 | |
| 12c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 7.54 | 8.13 | 9.52 | 10.79 | 11.97 | 14.19 | 16.17 | 19.5 | |
| 13c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 7.78 | 8.4 | 9.83 | 11.15 | 12.39 | 14.69 | 16.75 | 20.22 | |
| 14c | 绝缘层外径 | 1.5 | 1.65 | 1.9 | 2.22 | 2.52 | 3.03 | 3.53 | 4.37 |
| 护套外径 | 8.02 | 8.66 | 10.14 | 11.51 | 12.79 | 15.17 | 17.31 | 20.91 |
